Question

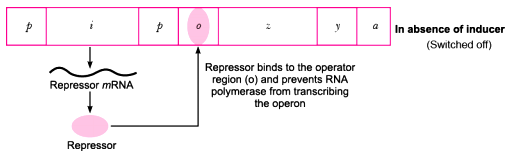

Draw a schematic diagram of lac operon in its ‘switched off’ position. Label the following:

i. The structural genes

ii. Repressor bound to its correct position

iii. Promoter gene

iv. Regulatory gene.

Answer 1

The lac operon

i. z, y and a are structural genes.

ii. p is the promoter sequence.

iii. i is the regulatory gene.
