Question

A force is excreted on a current-carrying conductor placed in a magnetic field. The direction of this force depends on both the direction of the current and the direction of the magnetic field. This force is maximum when the direction of the current is perpendicular to the direction of the magnetic field.

(a) By which law can we determine the direction of the force excreted on the current-carrying conductor?

(b) In which electrical equipment is this principle used?

(c) Draw a diagram representing the construction of this equipment.

(d) Write the working of this equipment in brief.

Answer 1

(a) Fleming’s left hand rule.

(b) Electric motor,

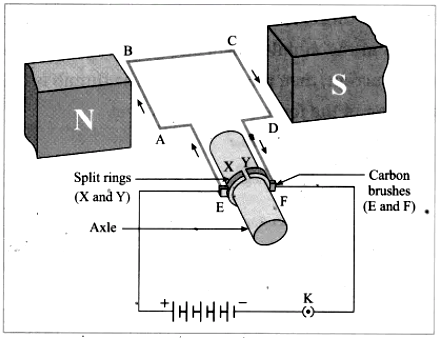

(c)

(d) Working:

1. When the circuit is completed with a plug key or switch, the current flows in the direction E → A → B → C → D → F. As the magnetic field is directed from the north pole to the south pole, the force on AB is downward and that on CD is upward by Fleming’s left hand rule. Hence, AB moves downward and CD upward. These forces are equal in magnitude and opposite in direction. Therefore, as observed from the side AD, the loop ABCD and the axle start rotating in anticlockwise direction.

2. After half a rotation, X and Y come in contact with brushes F and E respectively and the current flows in the direction EDCBAF. Hence the force on CD is downward and that on AB is upward. Therefore, the loop and the axle continue to rotate in the anticlockwise direction.

3. After every half rotation, the current in the loop is reversed and the loop and the axle continue to rotate in anticlockwise direction. When the current is switched off, the loop stops rotating after some time.
