(a) Suggest and draw the cable layout to efficiently connect various blocks of buildings within the Noida centre for connecting the digital devices.

Question

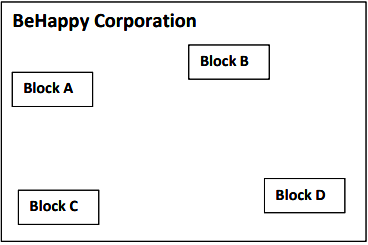

Be Happy Corporation has set up its new centre at Noida, Uttar Pradesh for its office and web-based activities. It has 4 blocks of buildings.

Distance between the various blocks is as follows:

A to B        40 m

B to C       120m

C to D       100m

A to D       170m

B to D      150m

A to C       70m

Numbers of computers in each block

Block A -   25

Block B -  50

Block C - 125

Block D - 10

(a) Suggest and draw the cable layout to efficiently connect various blocks of buildings within the Noida centre for connecting the digital devices.

(b) Suggest the placement of the following device with justification

i. Repeater

ii. Hub/Switch

(c) Which kind of network (PAN/LAN/WAN) will be formed if the Noida office is connected to its head office in Mumbai?

(d) Which fast and very effective wireless transmission medium should preferably be used to connect the head office at Mumbai with the centre at Noida?

Answer 1

(a)

(b) Repeater : between C and D as the distance between them is 100 mts.

Hub/ Switch : in each block as they help to share data packets within the devices of the network in each block

(c) WAN.

(d) Satellite
