Creating Excel Stacked Line Charts

A stacked line chart in Excel is a powerful data visualization tool that allows you to represent multiple data series on the same graph. Each data series is displayed as a line, and the lines are stacked on top of each other, making it easy to compare the total and individual contributions of each series to the whole. In this guide, I'll walk you through the step-by-step process of creating a stacked line chart in Excel, including example code.

Step 1: Data Preparation

Before creating a stacked line chart, you need to organize your data. Ensure that you have the following columns in your Excel spreadsheet:

• Categories or X-axis labels: These are the values that will be displayed on the horizontal axis (e.g., months, years).
• Data series: Each data series should have its own column. For example, if you want to display sales data for three different products, you should have one column for each product.

Here's an example of what your data might look like:

Month	Product A	Product B	Product C
January	100	120	80
February	110	130	90
March	120	125	95
...	...	...	...

Step 2: Select Data

Now that your data is ready, follow these steps to create a stacked line chart:

1. Select the data, including the X-axis labels and all data series. In our example, select "Month," "Product A," "Product B," and "Product C."

2. Go to the "Insert" tab on the Excel ribbon.

3. Click on the "Line" chart type. In the dropdown menu, select the "Stacked Line" chart.

Step 3: Customize the Stacked Line Chart

Once you have created the stacked line chart, you can customize it to enhance its readability and aesthetics.

3.1 Axis Labels

• X-axis label: You can modify the X-axis label by double-clicking on it and typing a new title. In our example, it can be "Months."

• Y-axis label: Double-click on the Y-axis label to change its title to something more descriptive, such as "Sales."

3.2 Legend

• To add a legend, click on the chart, then click on the "Chart Elements" button (a plus sign) in the upper-right corner of the chart.

• Check the "Legend" option to display a legend on the chart, showing the names of each data series (e.g., Product A, Product B, Product C).

3.3 Data Labels

• You can add data labels to your chart to display the values for each point on the lines. Right-click on a data series line, select "Add Data Labels."

3.4 Formatting

• To change the color, style, and other formatting options for the lines, double-click on the line you want to format, then use the "Format Data Series" panel that appears on the right.

Example Code for Stacked Line Chart

To create a stacked line chart in Excel using VBA (Visual Basic for Applications), you can use the following code as an example:

Sub CreateStackedLineChart()
    ' Define the data range
    Dim ChartData As Range
    Set ChartData = Worksheets("Sheet1").Range("A1:D13") ' Update the sheet name and range as needed

    ' Create a chart
    Dim ChartObject As ChartObject
    Set ChartObject = Worksheets("Sheet1").ChartObjects.Add(Left:=100, Width:=375, Top:=75, Height:=225)

    ' Set the chart type to Stacked Line
    ChartObject.Chart.ChartType = xlLineStacked

    ' Set the data source for the chart
    ChartObject.Chart.SetSourceData Source:=ChartData

    ' Customize the chart as needed
    With ChartObject.Chart
        .HasLegend = True
        .ChartTitle.Text = "Stacked Line Chart Example"
        ' Other formatting options can be set here
    End With
End Sub


This VBA code will create a stacked line chart on the specified worksheet and customize it according to your preferences.

Remember to adjust the sheet name and data range in the code to match your specific Excel workbook. You can run this code by pressing Alt + F11 to open the VBA editor, inserting a new module, and pasting the code into the module. Afterward, you can run the macro to create your stacked line chart.

Example

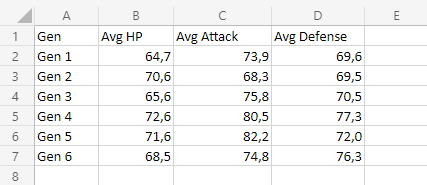

To follow along, let's take a look at how the average statistics accumulate throughout different generations of Pokemon.

Please choose the A1:D7 range, which includes labels and data, and then navigate to the Insert menu. From there, select the Line option and choose Stacked Line from the dropdown menu.

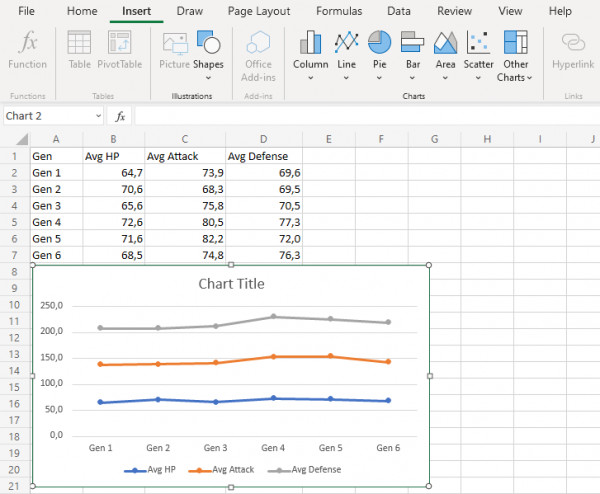

You should get the chart below:

Take a look at the chart for a graphical representation of Pokemon stats across generations.

The blue line represents average HP, while the orange line combines average HP and average attack. The gray line reflects the total of all stats when averaged across generations.

From the chart, it's evident that the 4th generation of Pokemon boasts the highest average stats.

Stacked Line with Markers

A stacked line chart with markers showcases data points highlighted by markers.

Example

Let's examine how the cumulative average stats change as we move through different Pokémon generations. Feel free to take note of the values as we go along.

Choose cells A1 to D7 for both labels and data. Access the Insert menu and then select the Line option, then opt for Stacked Line with Markers from the dropdown menu.

You should get the chart below:

Examine the chart to gain insight into the average stats of Pokemon throughout different generations.

Make sure to reference the values as you go through the chart.

The blue line represents the average HP, while the orange line illustrates the combined average of HP and Attack. The gray line provides a comprehensive view of all stats once the averages are aggregated.

The chart indicates that, on average, 4th generation Pokemon possess the highest stats.
