Question

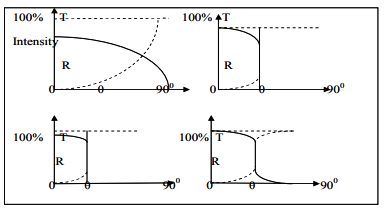

A light ray travelling in glass medium on glass-air interface at an angle of incidence θ. The reflected (R) and transmitted (T) intensities, both as function of θ, are plotted. The correct sketch is?

Answer 1

 After critical angle reflection will be 100% and transmission is 0%. Options (b) and (c) satisfy this condition. But option (c) is the correct option. Because in option (b) transmission is given 100% at θ = 0º, which is not true. So correct answer is(c).
