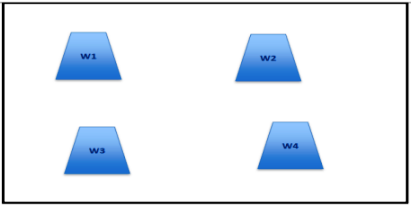

A company in Mega Enterprises has 4 wings of buildings as shown in the diagram
Center to center distances between various Buildings:
W3 to W1 - 50m
W1 to W2 - 60m
W2 to W4 - 25m
W4 to W3 - 170m
W3 to W2 - 125m
W1 to w4 - 90m
Number of computers in each of the wing:
W1 - 150
W2 - 15
W3 - 15
W4 - 25
Computers in each wing are networked but wings are not networked The company has now decided to connect the wings also.
i. Suggest a most suitable cable layout for the above connections.
ii. Suggest the most appropriate topology of the connection between the wings.
iii. The company wants internet accessibility in all the wings. Suggest a suitable technology.
iv. Suggest the placement of the following devices with justification if the company wants minimized network traffic a)Repeater b)Hub / switch
OR

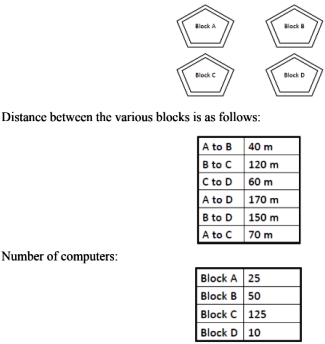

The Virtual Connects organization has set up its new centre at Noida for its office and webbased activities. It has 4 blocks of buildings as shown in the diagram below:
(i) Suggest the most suitable place (the Block) to install the server of this organization with a suitable reason.
(ii) Which device will you suggest to be placed/installed in each of these blocks to efficiently connect all the computers within these blocks?
(iii) Suggest the placement of a Repeater in the network with justification.
(iv) The organization is planning to link its office to an office in the hilly areas. Suggest a wayto connect it economically. Justify your answer.
