Question

A mild steel bar of 10 mm in diameter and 100 mm in gauge length is tested under tension. A tensile force of 10 kN produces an axial strain = 610μs, lateral strain = 180μs. Determine E and v for mild steel.

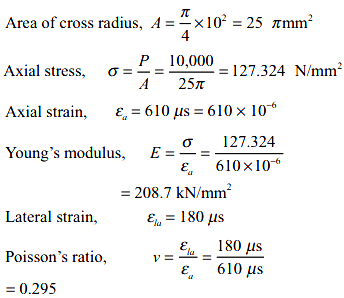

Answer 1

Tensile force, P = 10,000 N

 Sample diameter, d = 10 mm
